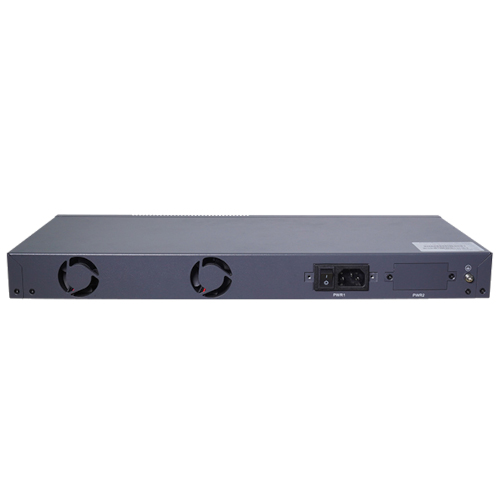

VSOL EPON  OLT V1600D4-DP  4 PORT  10G UPLINK

V-SOL V1600D4-BT series EPON OLT products are 1U height 19 inch rack mount products. The features ofthe OLT are small, convenient,flexible, easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT's canbeusedfor"Triple-Play", VPN, IP Camera, Enterprise LAN and Internet service provider applications. V1600D4-BT provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT ports for downlink. Itcansupport overall 256 ONU's with 64 ONU's per PON por

V1600D4-DP/BT V1600D8 V1600D16

Dimension (L*W*H) 442mm*200mm*43mm 442mm*320mm*43mm

GE/10GE

Uplink Port QTY 8 16 12

RJ45(GE) 4 8 4

SFP(GE)  / 4 4

SFP+(10GE) 4 4 4

EPON Port QTY 4 8 16

Physical Interface SFP Slots, Max splitting ratio ≤ 1:64

Management Ports 1*FE out-band port, 1*CONSOLE port

PON Port Specification

(PX20++ module) Transmission Distance 20KM

EPON port speed Upstream 1.25G, Downstream 1.25G

Wavelength TX 1490nm, RX 1310nm

Connector SC / UPC

Fiber Type 9/125μm SMF

Supported PON module level PX20, PX20+, PX20++, PX20+++

Weight

(Single AC Power) Net Weight 3.2kg 4.5kg 6.5kg

Gross Weight 4.3kg 6.5kg 7.8kg

Power Supply AC:100~240V, 47/63Hz, DC:-48V, BBU(option for D4-BT), Double Power Module Hot Backup

Power Consumption 35W 45W 85W

Operating

Environment Working Temperature 0°C ~ +50°C

Storage Temperature -40 ~ +85°C

Relative Humidity 5 ~ 90% (non-conditioning)

Management Mode EMS, TR069 VACS, WEB, SNMP, Telnet , CLI
